Aluminum Honeycomb Panel Sizes: Standard Sizes & Custom Dimensions Guide
Aluminum honeycomb panels are available in different sizes and thicknesses depending on their application. For buyers, contractors and manufacturers, choosing the correct panel dimensions is important for reducing material waste, simplifying fabrication and ensuring suitable structural performance.
One of the most common questions we receive is:
What is the standard size of an aluminum honeycomb panel?
At Meiren Aluminum, 1220 × 2440 mm (4 × 8 ft approximately) is our most commonly stocked aluminum honeycomb panel size. We also stock longer panels for wall cladding and interior applications, while custom dimensions and large-format panels can be manufactured according to project requirements.
This guide explains the standard aluminum honeycomb panel sizes, available lengths, common thicknesses and custom size options for different applications.

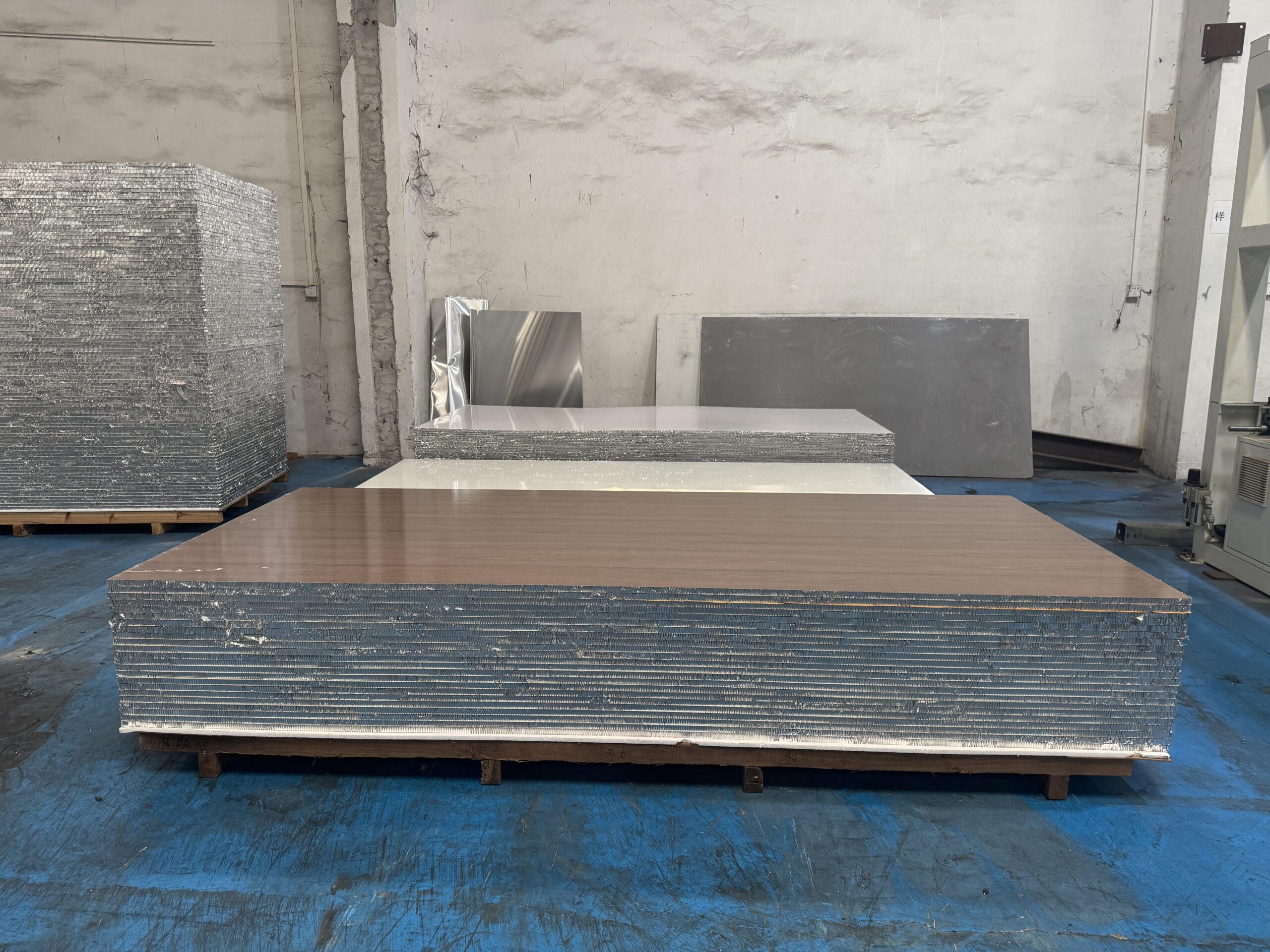

What Is the Standard Size of an Aluminum Honeycomb Panel?
The most commonly used standard aluminum honeycomb panel size at Meiren Aluminum is:
1220 × 2440 mm
This is approximately equivalent to the familiar 4 × 8 ft sheet format, making it convenient for fabrication, transportation and a wide range of industrial and interior applications.
The 1220 × 2440 mm format is commonly used as a base panel for:
- Furniture
- Cabinets
- Doors
- Interior panels
- Ceiling panels
- RV and camper interiors
- Vehicle applications
- Decorative panels
- Industrial fabrication

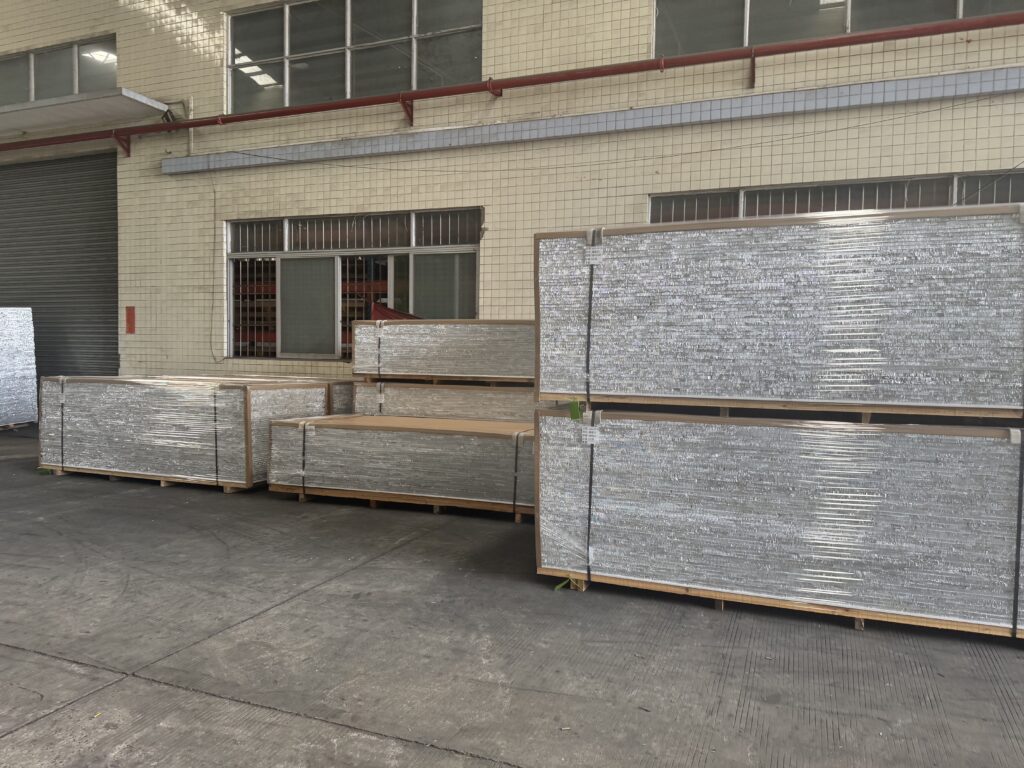

Because this size is commonly stocked, it is often a practical starting point for projects that do not require unusually large panels.
1220 × 2750 mm Aluminum Honeycomb Panels for Wall Applications
In addition to 1220 × 2440 mm panels, 1220 × 2750 mm is another important stocked size at Meiren Aluminum.
This dimension is particularly common for interior wall panels and residential wall cladding systems.
The additional length allows the panel to cover many floor-to-ceiling interior wall applications with fewer horizontal joints.
Typical applications include:
- Interior wall cladding
- Residential wall panels
- Commercial interiors
- Hotel interiors
- Apartment renovation
- Decorative wall systems
For projects where 2440 mm is too short, the 2750 mm panel provides another readily available option before moving to fully customized dimensions.
Common Aluminum Honeycomb Panel Lengths
In addition to the two main stocked formats, Meiren Aluminum commonly produces or keeps panel lengths suitable for different project requirements.
Common lengths include:
- 2440 mm
- 2600 mm
- 2750 mm
- 2800 mm
- 3000 mm
- 3200 mm
For these common panel formats, 1220 mm is the standard width.
This gives architects, furniture manufacturers, contractors and fabricators more flexibility when matching panel dimensions to their designs.
Can Aluminum Honeycomb Panels Be Customized?
Yes.
Aluminum honeycomb panels are highly customizable, and projects are not limited to standard 1220 × 2440 mm sheets.
Meiren Aluminum can manufacture and cut panels according to project drawings and required dimensions.
For custom projects, the panel width can reach approximately:
Maximum width: up to 1500 mm
For large-format projects, panel lengths can reach approximately:
6–9 meters depending on the order and panel specification
The actual achievable dimensions depend on factors such as panel construction, surface material, thickness, manufacturing requirements, transportation and order quantity.
For this reason, very large or extra-long panels should be confirmed according to the specific project rather than treated as standard stock sizes.

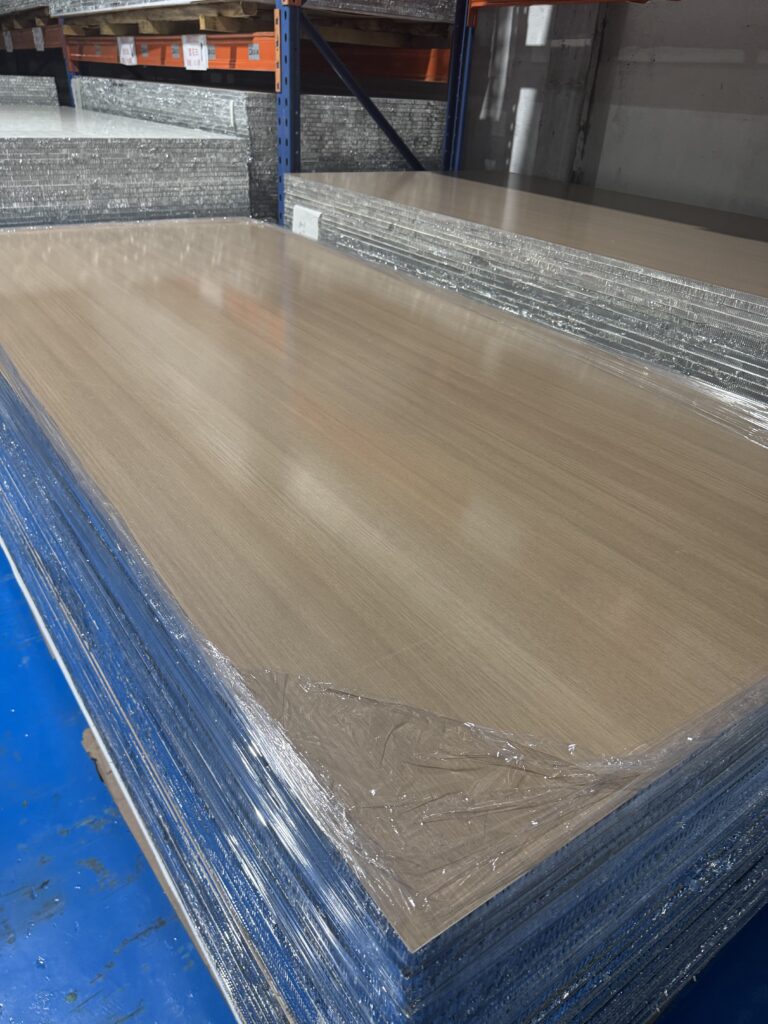

Why Choose Custom-Cut Honeycomb Panels?
Custom cutting can help manufacturers and contractors reduce unnecessary secondary processing.
Instead of purchasing a standard sheet and performing extensive cutting at another facility, panels can be produced or cut closer to the required final dimensions.
Potential advantages include:
- Reduced material waste
- Less on-site cutting
- Faster assembly
- More consistent dimensions
- Easier project planning
- Better suitability for large-format designs
For OEM and project orders, buyers can provide drawings or a cutting list before production.

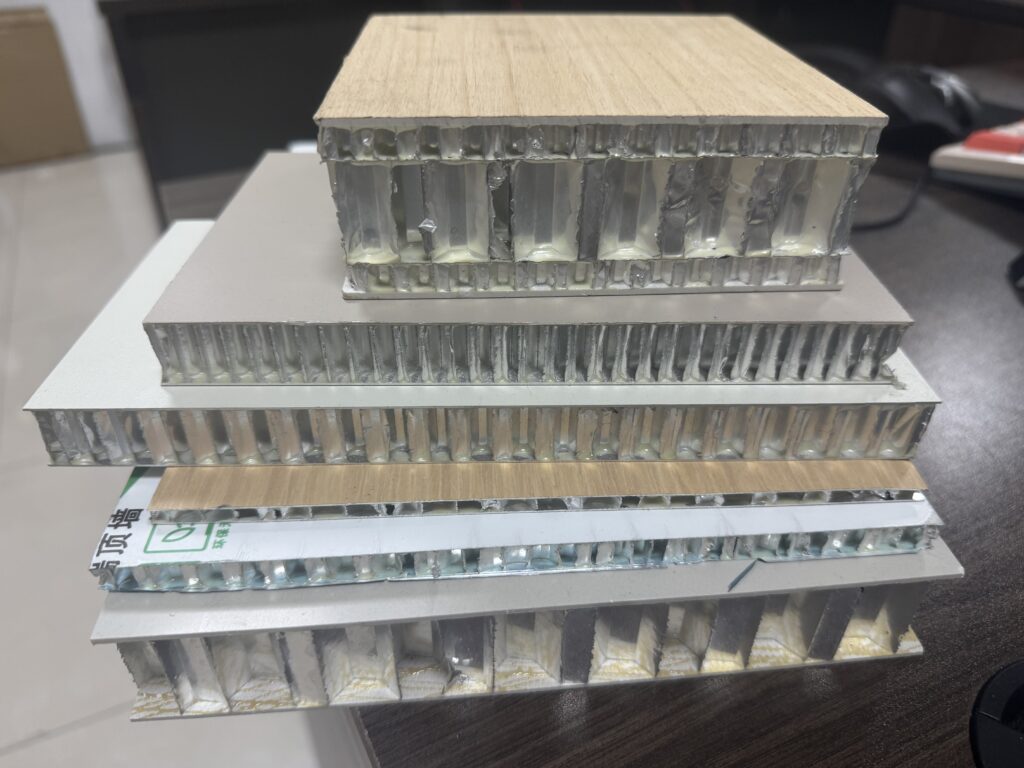

Common Aluminum Honeycomb Panel Thicknesses by Application
Panel size is only one part of aluminum honeycomb panel selection.
Thickness is equally important.
Different applications require different levels of rigidity, weight and structural performance.
At Meiren Aluminum, several common finished panel thicknesses are associated with specific applications.
6 mm Aluminum Honeycomb Panels – Ceiling Applications
A common finished thickness for aluminum honeycomb ceiling panels is:
6 mm
Thin honeycomb panels can provide a lightweight solution for ceiling systems where controlling overall panel weight is important.
Typical applications include:
- Commercial ceilings
- Interior ceilings
- Decorative ceiling panels
- Public building interiors
- Customized ceiling systems
The final specification should still be selected according to panel dimensions, installation system and project requirements.
For interior wall cladding, a commonly used finished panel thickness is:
9 mm
This specification is particularly relevant to residential and decorative wall panel systems.
Combined with longer formats such as 1220 × 2750 mm, 9 mm panels can be used to create large wall surfaces with fewer joints.
Typical applications include:
- Residential wall panels
- Hotel wall cladding
- Commercial interiors
- Apartment interiors
- Decorative feature walls
18 mm Aluminum Honeycomb Panels – Cabinets and Furniture
For cabinet body panels, a common finished thickness is:
18 mm
This dimension is familiar to furniture and cabinet manufacturers and can be used as an alternative panel structure in applications where lightweight construction, moisture resistance and dimensional stability are important.
Typical applications include:
- Kitchen cabinet bodies
- Bathroom cabinets
- Wardrobes
- Storage cabinets
- Customized aluminum furniture
Panel surfaces can also be customized according to the required decorative finish.
10–25 mm Aluminum Honeycomb Panels – Engineering and Curtain Wall Applications
Engineering and curtain wall projects commonly require thicker panel structures.
Common finished thicknesses include:
- 10 mm
- 15 mm
- 20 mm
- 25 mm
The correct thickness depends on the panel dimensions, supporting structure, wind load requirements, aluminum skin thickness and other engineering factors.
For architectural projects, panel thickness should therefore be selected based on the actual project requirements rather than appearance alone.
Aluminum Honeycomb Panel Size and Thickness Reference
| Application | Common Size / Width | Common Finished Thickness |
|---|---|---|
| General Aluminum Honeycomb Panel | 1220 × 2440 mm | Project-dependent |
| Interior Wall Panel | 1220 × 2750 mm | 9 mm |
| Ceiling Panel | 1220 mm standard width | 6 mm |
| Cabinet Body Panel | 1220 × 2440 mm or custom | 18 mm |
| Engineering / Curtain Wall | Custom dimensions | 10 / 15 / 20 / 25 mm |
| SPC Honeycomb Panel | 1220 × 2440 / 1220 × 2750 mm | 6–12 mm |
| Stainless Steel Honeycomb Panel | 1220 × 2440 mm base panel | Custom |
| Welded Aluminum Honeycomb Panel | Mainly 1220 × 2440 mm | Custom |
Important: These dimensions are common Meiren Aluminum production specifications and reference sizes. Final specifications should be confirmed according to the individual project.
SPC aluminum honeycomb panels combine a decorative SPC surface with a lightweight honeycomb panel structure.
Common base panel dimensions include:
1220 × 2440 mm
and
1220 × 2750 mm
Common finished thicknesses range from:
6–12 mm
These panels are particularly suitable for decorative interior applications where the surface appearance and lightweight panel construction are both important.
Depending on the project, panel dimensions can also be customized.
Stainless Steel Honeycomb Panel Sizes
Stainless steel honeycomb panels combine a stainless steel surface with a lightweight honeycomb sandwich structure.
At Meiren Aluminum, a common base panel size is:
1220 × 2440 mm
Custom lengths are also available depending on project requirements.
Common stainless steel surface sheet thicknesses include:
0.6–1.2 mm
The final panel dimensions and construction can be customized according to the required application, surface finish and project specifications.
Welded Aluminum Honeycomb Panel Sizes
For welded aluminum honeycomb panels, the main full-sheet format is:
1220 × 2440 mm
Panels can then be cut and customized according to project requirements.
Welded honeycomb panels are different from conventional adhesive-bonded sandwich panels, so the final specification should be confirmed according to the intended application and required fabrication method.
How to Choose the Right Aluminum Honeycomb Panel Size
The largest panel is not automatically the best panel.
Choosing the right aluminum honeycomb panel dimensions requires considering the complete project.
Before ordering, buyers should evaluate the following factors.
1. Application
Start by identifying where the panel will be used.
A ceiling panel, cabinet body, RV interior panel and building curtain wall have very different requirements.
The application affects both panel size and thickness.
2. Required Finished Dimensions
If the final component is significantly smaller than 1220 × 2440 mm, purchasing or producing panels according to a cutting plan may help reduce waste.
For wall cladding, longer panels such as 2750, 2800, 3000 or 3200 mm may reduce the number of joints.
3. Panel Thickness
Larger dimensions generally require careful consideration of panel rigidity.
A very large panel cannot be specified based only on length and width. Panel thickness, aluminum skin thickness, honeycomb core and supporting structure all influence performance.
4. Transportation
Large-format panels can reduce joints, but they also create transportation and handling challenges.
Before selecting 6–9 meter custom panels, buyers should consider:
- Container dimensions
- Packaging
- Loading and unloading
- Site access
- Installation equipment
- Risk of transportation damage
Sometimes dividing a very large panel into several optimized dimensions can be more practical than manufacturing the largest possible panel.
5. Cutting and Fabrication
If panels require CNC cutting, edge folding, holes, grooves or other fabrication, the original sheet dimensions should be planned around the final parts.
Providing drawings before production allows the manufacturer to evaluate a more efficient panel layout.
Standard Size vs Custom Size: Which Should You Choose?
Standard-size aluminum honeycomb panels are usually suitable when:
- 1220 × 2440 mm meets the fabrication requirements
- Fast material availability is important
- Panels will be cut into smaller components
- The project uses conventional sheet dimensions
Longer stocked or commonly produced panels are useful when:
- Full-height wall panels are required
- Fewer joints are preferred
- 2440 mm is insufficient for the design
Custom sizes are worth considering when:
- The project requires unusually large panels
- Material waste needs to be minimized
- OEM components have fixed dimensions
- Architectural drawings specify non-standard dimensions
- Large-format wall or ceiling panels are required
The most economical option is not always the smallest or largest panel. It is usually the dimension that best matches the final cutting and installation plan.
What Information Should You Provide When Requesting a Quote?
When requesting an aluminum honeycomb panel quotation, simply asking for the “price per sheet” is usually not enough.
Different panel structures can have very different costs.
To receive a more accurate quotation, provide:
- Application
- Panel length × width
- Finished panel thickness
- Aluminum skin thickness, if specified
- Surface material or finish
- Required quantity
- Edge treatment
- Cutting or fabrication requirements
- Project drawings, if available
- Destination or transportation requirements
For example:
Application: Interior wall panel
Size: 1220 × 2750 mm
Thickness: 9 mm
Surface: Decorative finish
Quantity: 500 sheets
This information allows the manufacturer to recommend and quote a more appropriate panel construction.

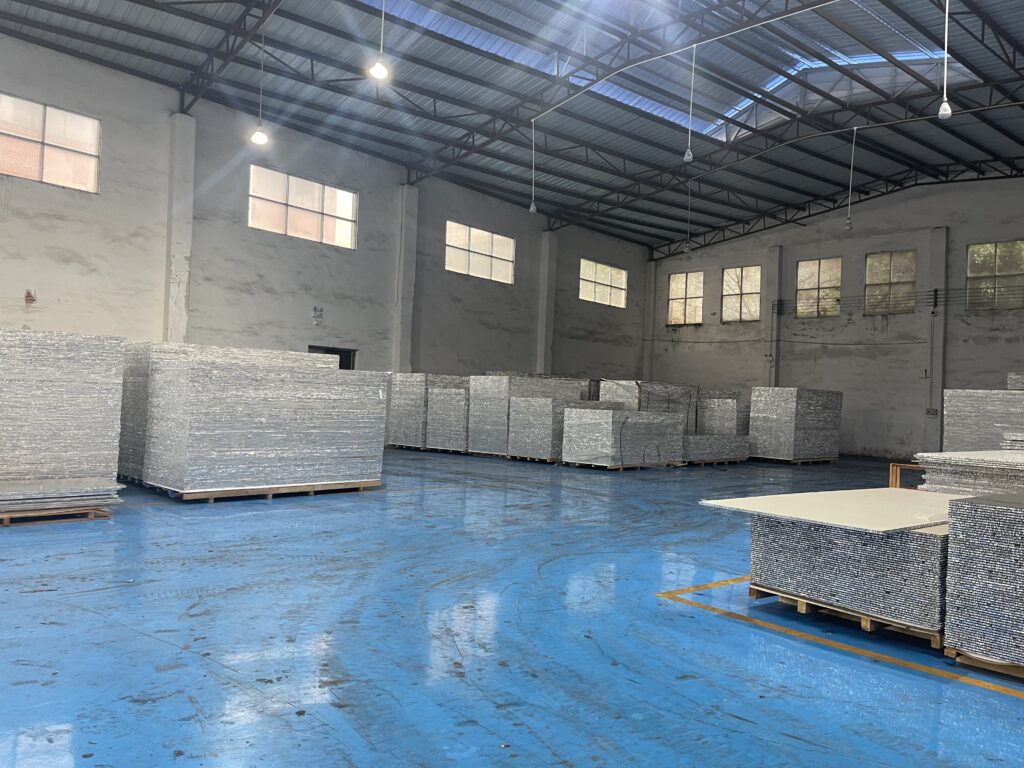

Custom Aluminum Honeycomb Panels from Meiren Aluminum
Foshan Meiren Aluminum Co., Ltd. manufactures standard and customized aluminum honeycomb panels for B2B customers and project applications.
Our commonly available panel dimensions include:
1220 × 2440 mm – standard general-purpose stock size
1220 × 2750 mm – common stock size for interior wall panels
Common additional lengths include:
2600 / 2800 / 3000 / 3200 mm
The standard width for these common formats is 1220 mm.
For customized projects, widths up to approximately 1500 mm and extra-long panels of approximately 6–9 meters may be available depending on the order and specific panel construction.
We also manufacture different honeycomb panel structures for ceilings, wall panels, cabinets, curtain walls, SPC decorative panels, stainless steel honeycomb panels and welded honeycomb panels.
If your project requires a non-standard size, send us your drawing, panel dimensions, thickness, surface requirements and quantity for evaluation.
Frequently Asked Questions About Aluminum Honeycomb Panel Sizes
What is the standard size of an aluminum honeycomb panel?
At Meiren Aluminum, 1220 × 2440 mm is the most common general-purpose stock size.
It is approximately equivalent to a 4 × 8 ft sheet and is suitable for a wide range of fabrication, furniture, interior and industrial applications.
Do you have 1220 × 2750 mm aluminum honeycomb panels?
Yes. 1220 × 2750 mm is a common stocked format, particularly for residential and interior wall panel applications.
What other aluminum honeycomb panel lengths are available?
Common lengths include 2600 mm, 2800 mm, 3000 mm and 3200 mm, generally with a standard width of 1220 mm.
Other dimensions can be customized.
What is the maximum width of an aluminum honeycomb panel?
For customized projects, Meiren Aluminum can produce panels up to approximately 1500 mm wide, depending on the specific product structure and order requirements.
How long can an aluminum honeycomb panel be?
For special large-format orders, panel lengths of approximately 6–9 meters may be possible.
This is not a standard stock specification. Feasibility depends on the panel construction, order, manufacturing requirements and transportation conditions.
Can aluminum honeycomb panels be cut to custom sizes?
Yes. Panels can be cut and customized according to project dimensions and drawings.
For OEM and project orders, providing a cutting list or technical drawing can help optimize material utilization.
What thickness should I choose for an aluminum honeycomb panel?
The appropriate thickness depends on the application.
Common Meiren Aluminum finished panel specifications include 6 mm for ceiling panels, 9 mm for wall panels, 18 mm for cabinet body panels, and 10 / 15 / 20 / 25 mm for engineering and curtain wall applications.
These are common specifications rather than universal requirements. Final thickness should be selected according to the project.
What size are SPC honeycomb panels?
Common SPC honeycomb panel base sizes include 1220 × 2440 mm and 1220 × 2750 mm, with common finished thicknesses of approximately 6–12 mm.
Custom dimensions are also available.
Conclusion
The most common aluminum honeycomb panel size at Meiren Aluminum is 1220 × 2440 mm, while 1220 × 2750 mm is another important stocked format for interior wall panel applications.
Common longer panel lengths include 2600, 2800, 3000 and 3200 mm, generally based on a 1220 mm standard width.
For special projects, aluminum honeycomb panels can also be customized beyond these dimensions, with widths up to approximately 1500 mm and extra-long panels reaching approximately 6–9 meters depending on the order.
More importantly, panel dimensions should always be considered together with thickness, aluminum skins, honeycomb core, surface material, fabrication method and application requirements.
For customized projects, send Meiren Aluminum your required length, width, thickness, quantity and application so that the panel structure and dimensions can be evaluated before production.
